ColoRuler

A Scanning Spectrophotometer. A Ruler for Color Quality. A Tool for Printing Process Control

Category:
Description

What does ColoRuler do?

  • The ColoRuler scans a color bar on press sheets automatically.
  • Improves efficiency and decreases waste of press.
  • Simple and meaningful display for press operators.
  • Makes press diagnostics easy.
  • Direction connection to the world’s best color analysis platform.
  • Plug and play setup in 20 minutes.
System Requirements
ColoRuler scan track harware specification
Color bar requirements Minimum patch size 5mm x 5mm, maximum bar length 1040mm
Paper positioning Floating paper stop, suction positioning.
(Compressed air vacuum converter included, without vacuum pump – Optional)
Computer Built-in microcomputer, with Windows 10 operating system
(Wireless mouse and keyboard included, does not include the display monitor – optional)
Size and weight 1500mm L x 240mm D x 110mm H 13kg
Nozzle Configuration Color and Monochrome; 800 nozzles x 10 channels

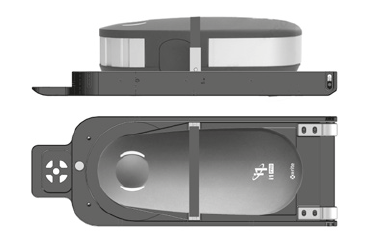

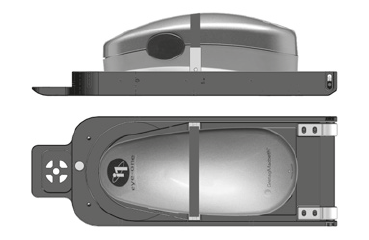

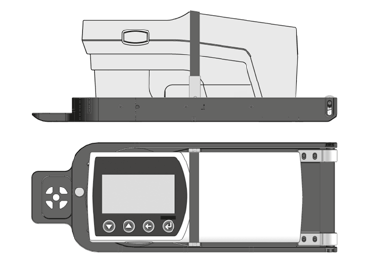

ColoRuler measurement head specifications X-Rite i1Pro X-Rite i1Pro2 Konica Minolta
FD-7
Measurement light source Gas filled tungsten Gas filled tungsten LED
Measurement spectral range 380~730nm 380~730nm 380~730nm
Geometry 45°/ 0° 45°/ 0° 45°/ 0°
Measurement conditions M0 M0 M0/M1/M2/M3
Measurement mode Motorized spot and scanning Motorized spot and scanning Motorized spot and scanning
Illumination spot / aperture size 3.5mm / 4.5mm 3.5mm / 4.5mm 3.5mm / 4.5mm
Minimum patch size 5mm x 5mm 5mm x 5mm 5mm x 5mm
